| Dry Well Thermostat Orientation
It is important that the dry well pocket is correctly orientated, i.e. horizontally. |
|
|

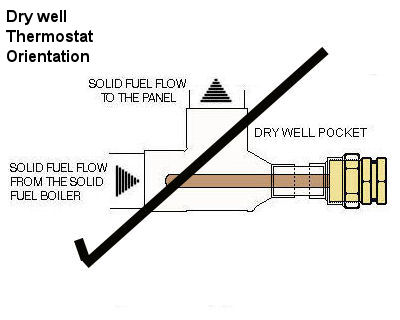

Correct
|

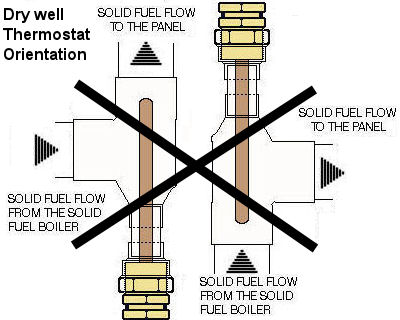

Incorrect
|
|
Positioning the Dry Well Thermostat In order that the dry well thermostat carry out its purpose efficiently it is crucial that it is correctly sited and installed on or near the solid fuel appliance, see figures 7, 1A, 1B, & 1C below
Dry Well Thermostat fitted close to the boiler in the solid fuel flow pipe
Dry Well Thermostat fitted in solid fuel boiler unused flow pipe
|
|
|
